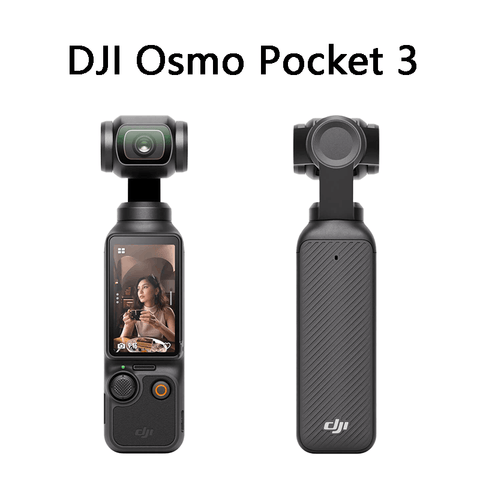

DJI Osmo Pocket 3 – 1-Inch Sensor Pocket Gimbal Camera with 100% Official Specs
Discover the portable and professional DJI Osmo Pocket 3 – a pocket-sized gimbal camera strictly adhering to official configurations, featuring a 1-inch large CMOS sensor, stable 3-axis gimbal, and versatile shooting modes. Tailored for creators valuing portability and image quality, it delivers long battery life, intuitive operation, and high-definition video performance, fully aligning with DJI’s official product definition.
🔹 Core Selling Points (100% Matched with Official Specs)
• Large Sensor Imaging: 1-inch CMOS sensor | f/2.0 aperture + 20mm equivalent focal length
• Stable Gimbal Performance: 3-axis gimbal with ±0.005° shake suppression | 180.0°/s max control speed
• High-Definition Video: 4K@120fps slow motion | 130Mbps max bitrate | Low-light video support (ISO up to 16000)
• Versatile Shooting Modes: Motion time-lapse, static time-lapse, track time-lapse (4 waypoints) | 180° panorama
• Intuitive Operation: 2.0-inch touchscreen (314×556 resolution, 700 nits) | One-handed control
• Long Battery Life: 1300mAh battery | Up to 166 minutes of working time | 32-minute full charge (65W PD fast charge)
• Expandable Storage: Supports microSD card up to 1TB | Triple-microphone stereo audio
• Flexible Connectivity: Dual-band Wi-Fi (2.4GHz/5GHz) | Bluetooth 5.2 (BLE 5.2, BR/EDR)
Design & Dimensions (Strictly Official Data)
• Product Form: Integrated pocket gimbal camera (camera + gimbal all-in-one)
• Body Material: Durable lightweight material
• Exact Size & Weight:
- Dimensions (L×W×H): 139.7mm × 42.2mm × 33.5mm
- Net Weight: 179 grams
• Key Design: Rotatable touchscreen (supports horizontal/vertical shooting switch) | 5-way joystick + record button for full control
Note: Actual weight may vary by manufacturing process and measurement method.
Craft & Core Hardware (Official Description)
• Display: 2.0-inch OLED touchscreen | 314×556 resolution | 700 nits brightness (clear visibility outdoors)
• Audio Configuration: 3 built-in microphones | Supports wind noise reduction + omnidirectional stereo recording
• Storage Interface: microSD card slot (supports UHS-I/UHS-II speed class 3 cards)
• Core Components:
- Lens: Fixed focal length, focus range 0.2m to infinity
- Gimbal Structure: Precision 3-axis design, supports pan/tilt/roll rotation
- Control Buttons: 5-way joystick (adjust gimbal direction) + record button (one-tap shooting)
• Connection Ports: Supports PD fast charging (charging port not specified in official specs)
Gimbal Performance (1:1 Official Specs)
• Controllable Rotation Range:
- Pan: -235° to 58°
- Tilt: -120° to 70°
- Roll: -45° to 45°
• Structural Rotation Range:
- Pan: -240° to 63°
- Tilt: -180° to 98°
- Roll: -220° to 63°
• Key Gimbal Features:
- Max Control Speed: 180.0°/second (fast response to operation)
- Shake Suppression: ±0.005° (stable footage during movement)
- Intelligent Following: Supports intelligent following 6.0 (official functional description)
Image & Video Performance (Full Official List)
Photo Specifications
• Resolution (Multiple Aspect Ratios):
- 16:9: 3840×2160 (about 9.4 million pixels)
- 1:1: 3072×3072
• Image Format: JPEG, JPEG + DNG (raw format for professional editing)
• Shooting Modes:
- Single shot, Countdown shooting (Off/3/5/7 seconds)
- Panorama mode: 180°, 3×3 stitching
• Zoom: 2x digital zoom (3840×2160 resolution)
• ISO Range: 50 to 6400
• Shutter Speed: 1/8000 second to 1 second
Video Specifications
Standard Video Recording
• 4K (16:9): 3840×2160@24/25/30/48/50/60fps
• 2.7K (16:9): 2688×1512@24/25/30/48/50/60fps
• 1080p (16:9): 1920×1080@24/25/30/48/50/60fps
• 3K (1:1): 3072×3072@24/25/30/48/50/60fps
• 2160p (1:1): 2160×2160@24/25/30/48/50/60fps
• 1080p (1:1): 1080×1080@24/25/30/48/50/60fps
• 3K (9:16): 1728×3072@24/25/30/48/50/60fps
• 2.7K (9:16): 1512×2688@24/25/30/48/50/60fps
• 1080p (9:16): 1080×1920@24/25/30/48/50/60fps
Slow Motion Recording
• 4K (16:9): 3840×2160@120fps
• 2.7K: 2688×1512@120fps
• 1080p: 1920×1080@120/240fps
Special Modes
• Low-Light Video: 4K@24/25/30fps, 1080p@24/25/30fps (ISO up to 16000)
• Motion Time-Lapse: 4K/2.7K/1080p@25/30fps (speed: Auto/×2/×5/×10/×15/×30)
• Static Time-Lapse: 4K/2.7K/1080p@25/30fps
- Shooting Interval: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40/60 seconds
- Shooting Duration: 5/10/20/30 minutes, 1/2/3/5/∞ hours
• Track Time-Lapse: 4K/2.7K/1080p@25/30fps
- Shooting Interval: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40/60 seconds
- Shooting Duration: 5/10/20/30 minutes, 1/2/3/5 hours
- Waypoints: Up to 4 customizable points
• Video Technical Parameters:
- Encoding Format: H.264/HEVC
- Max Bitrate: 130Mbps
- Video Format: MP4
- ISO Range: 50 to 6400 (standard video), 50 to 16000 (low-light video), 50 to 6400 (slow motion)
- Shutter Speed: 1/8000 second to frame rate-limited shutter
• Zoom:
- 1080p: 4x digital zoom
- 2.7K: 3x digital zoom
- 4K: 2x digital zoom
- UVC & Live Streaming: 1080p, 4x digital zoom
- Slow motion/time-lapse: Not supported
Battery & Charging (100% Official Data)
• Battery Type: Built-in lithium-ion battery
• Battery Capacity: 1300 mAh (10.01 Wh, 7.70 V)
• Working Time: Up to 166 minutes (test conditions: 25°C, 1080p/24fps (16:9), Wi-Fi off, screen off)
• Charging Specifications:
- Fast Charging: 80% charged in 16 minutes, 100% charged in 32 minutes (tested with DJI 65W PD fast charger, charger sold separately)
- Charging Temperature Range: 5°C to 45°C
Connectivity & Compatibility (Official Details)
• Wireless Connectivity:
- Wi-Fi: 802.11 a/b/g/n/ac protocol
- Wi-Fi Frequency: 2.400 GHz-2.4835 GHz, 5.150 GHz-5.250 GHz, 5.725 GHz-5.850 GHz
- Wi-Fi Transmit Power (EIRP):
- 2.4 GHz: <23 dBm (FCC), <20 dBm (CE/SRRC/MIC)
- 5.1 GHz: <23 dBm (FCC/SRRC), <20 dBm (CE)
- 5.8 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)
- Bluetooth: BLE 5.2, BR/EDR protocol
- Bluetooth Frequency: 2.400 GHz-2.4835 GHz
- Bluetooth Transmit Power (EIRP): <14 dBm
• Storage Compatibility: Supports microSD card up to 1TB (recommended models include SanDisk Extreme Pro, Kingston Canvas series, Lexar Pro series, etc.)
Durability & Environmental Requirements
• Operating Temperature: 0°C to 40°C
• Relative Humidity: 5% to 90% non-condensing
• Working Altitude: Not specified in official specs (follow standard consumer electronic device ranges)
Function Support Limitations
• No Built-in Storage: Relies on microSD card for storage (card not included)
• Zoom Limitations: Slow motion/time-lapse modes do not support digital zoom
• Charger Not Included: PD fast charger needs to be purchased separately for fast charging
• Shooting Restrictions: Track time-lapse shooting duration limited to max 5 hours; waypoints limited to 4
• Regional Differences: Wi-Fi/Bluetooth transmit power varies by regional regulations
In the Box
Standard package includes
Osmo Pocket 3
Type-C to Type-C PD Cable
Osmo Pocket 3 Protective Cover
DJI Wrist Strap
Osmo Pocket 3 Handle With 1/4 Thread
All-round Set
Osmo Pocket 3
Type-C to Type-C PD Cable
Osmo Pocket 3 Protective Cover
DJI Wrist Strap
Osmo Pocket 3 Handle With 1/4 Thread
Osmo Pocket 3 Wide-Angle Lens
DJI Mic 2 Transmitter (Shadow Black)
DJI Mic 2 Windscreen
DJI Mic 2 Clip Magnet
Osmo Pocket 3 Battery Handle
Osmo Mini Tripod
Osmo Pocket 3 Carrying Bag
