Xiaomi 17 Pro Max – Key Highlights

Display Innovations: Miaoxiang rear display, Low-power Super Sunlight Display, Xiaomi Dragon Crystal Glass 3.0, 6.9-inch main display (supports Super Pixel).
Core Performance: 5th Generation Snapdragon 8 Ultra Mobile Platform (3nm TSMC process).
Battery & Charging: 7500mAh Xiaomi Jinsha River battery, 100W Xiaomi Surge wired fast charge, 50W Xiaomi Surge wireless fast charge, 22.5W wired/wireless reverse charging.
Imaging System: Leica Optics Summilux high-speed lens, 50MP Leica ultra-high dynamic main camera (Shadow Hunter 950L sensor), 50MP Leica ultra-light-gathering periscope telephoto, 50MP Leica ultra-wide angle.
Connectivity & Audio: UWB ultra-wideband connectivity, stereo dual speakers, high-dynamic 4-MIC array.
Operating System: Xiaomi HyperOS 3.

Design & Dimensions

Dimensions & Weight:

• Length: 162.9 mm

• Width: 77.6 mm

• Thickness: 8.0 mm (Xiaomi lab data; actual may vary slightly)

• Weight: 219 g (Xiaomi lab data; actual may vary slightly)

Colors: Black, White, Cool Smoke Purple, Forest Green

Ports & Buttons:

• Ports: USB Type-C, dual-side charging port, SIM card slot

• Buttons: Volume up/down, Power

• Others: Speaker/microphone, flash, infrared/TOF sensor, additional microphones

Memory & Storage

Configurations: Up to 16GB + 1TB

• RAM: 12GB / 16GB LPDDR5X

• Internal Storage (ROM): 512GB / 1TB UFS 4.1

Note: Actual available memory/storage may vary due to system and pre-installed apps.

Mobile Platform (Chipset)

• SoC: 5th Gen Snapdragon 8 Ultra

• Process: TSMC 3nm

• CPU: 3rd Gen Qualcomm Oryon, up to 4.60GHz

• GPU: Adreno GPU

• AI: Qualcomm AI Engine

Display

Main Display:

• Size: 6.9-inch

• Type: AMOLED

• Resolution: 2608 × 1200 (supports Super Pixel)

• Refresh Rate: Up to 120Hz

• Touch Sampling Rate: Up to 300Hz

• Color Gamut: P3

• Brightness: 1nit min, 3500nits peak

• Features: Full-brightness DC dimming, professional true-color display, full-screen always-on display, ultra-dynamic display, wet-hand touch, multi-screen color matching

• Glass: Xiaomi Dragon Crystal Glass 3.0

• Certification: HDR10+, HDR Vivid, Dolby Vision

Rear Display:

• Size: 2.9-inch

• Type: AMOLED

• Resolution: 976 × 596

• Refresh Rate: Up to 120Hz

• Touch Sampling Rate: Up to 120Hz

• Color Gamut: P3

• Brightness: 1nit min, 3500nits peak

• Features: Full-brightness DC dimming

• Glass: Xiaomi Dragon Crystal Glass

Unlocking:

• 3D Ultrasonic Fingerprint (may be affected by third-party screen protectors; official Xiaomi protector recommended)

Battery & Charging

• Capacity: 7500mAh (typ) / 7330mAh (min), non-removable

• Charging Port: USB Type-C dual-side

• Supported Protocols: QC3+/QC3.0/QC2.0/PD3.0/PD2.0, 100W PPS universal fast charge

• Wired Charging: 100W Xiaomi Surge

• Wireless Charging: 50W Xiaomi Surge

• Reverse Charging: 22.5W wired/wireless

Note: Charging speed may vary in real usage.

Imaging System

Rear Cameras:

• 50MP Leica Ultra-High Dynamic Main: Shadow Hunter 950L sensor, ƒ/1.67, 23mm equivalent, 2.44μm quad-pixel, OIS, QPD autofocus, 1G+6P lens

• 50MP Leica Periscope Telephoto: 1/2” sensor, ƒ/2.6, 5x optical zoom, 30cm tele-macro, OIS

• 50MP Leica Ultra-Wide: ƒ/2.4, 17mm equivalent, 102° FOV, 5cm super macro, AF

Front Camera:

• 50MP, ƒ/2.2, 90° wide-angle, AF

Rear Features: Rear selfie, rear preview, rear sticker, dynamic photo, super moon, photo watermark, Leica dual-quality, Dolby Vision, sports capture, professional presets, night mode, tracking focus, audio source focus, portrait blur, master lens package, smart beauty, video beauty, street photography, professional mode, timelapse, slow motion, long exposure, ID copy, panorama, countdown photo, voice photo, touch photo, timer burst, reference lines, level

Front Features: Dynamic photo, smart beauty, portrait blur, photo watermark, video beauty, timelapse, slow motion, teleprompter, countdown photo, gesture photo, voice photo, touch photo, reference lines

Video:

• Rear: 8K 30fps, 4K 30/60/120fps, 1080P 30/60fps, 720P 30fps; slow motion up to 1920fps

• Front: 4K 30/60fps, 1080P 30/60fps, 720P 30fps

Connectivity

• SIM: Dual Nano-SIM, all carriers, 5G ready

• 5G/4G/3G/2G support (specific network compatibility varies)

• 5G Bands: n1/n2/n3/n5/n7/n8/n12/n13/n18/n20/n25/n26/n28/n38/n40/n41/n48/n66/n70/n71/n77/n78/n79/n80/n81/n83/n84/n89

• 4G/3G/2G Bands: FDD-LTE, TDD-LTE, WCDMA, GSM

• Wi-Fi: Wi-Fi 7/6E/5/4, 2.4G & 5G dual-band, MLO, 2x2 MIMO, 8x8 Sounding, Wi-Fi Direct, Miracast

• Bluetooth: 5.4, Dual-Bluetooth, SBC/AAC/AptX/AptX HD/AptX Adaptive/LDAC/LHDC 5.0/LC3/MIHC

• UWB ultra-wideband

• USB: 3.2 Gen1

NFC: Transit cards, Mi Pay, door access, car key (availability depends on region and hardware)

Navigation: Beidou, GPS, Galileo, GLONASS, QZSS, NavIC; AGNSS, Wi-Fi, sensor-assisted positioning

Audio & Video

• Stereo dual speakers, 4-MIC array

• USB-C headphone only

• Audio: MP3, FLAC, APE, AAC, OGG, WAV, AMR, AWB; Hi-Res & Hi-Res Wireless, Dolby Atmos, spatial audio

• Video: MP4, MKV, WEBM, 3GP, TS; HDR10+, Dolby Vision, HDR Vivid

Sensors

Proximity, under-display ambient light, rear ambient light, accelerometer, gyroscope, compass, X-axis linear motor, IR remote, flicker sensor, laser focus, barometer, hall sensor

Operating System

Xiaomi HyperOS 3

Box Contents

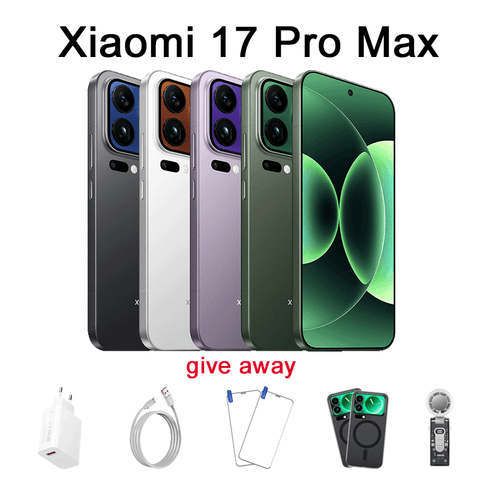

Xiaomi 17 Pro Max phone

Includes：Data cable, charger,  screen protectors *2,  phone cases*2，handheld fan*1
