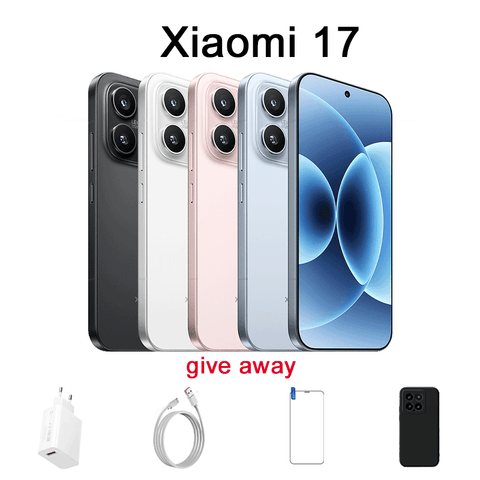

Xiaomi 17 – Official Specifications

Key Highlights

Chipset: Snapdragon® 8 Gen 5 Ultimate Edition Mobile Platform
Imaging: Leica Summilux High-Speed Optical Lens, New-Generation Leica G+P Lens System, Light Fusion 950 High Dynamic Main Camera, 60mm Leica Floating Telephoto, 50MP Ultra-Sensitive Front Camera, Next-Generation Master Portrait
Display: 1.5K Low-Power Super Sunlight Display, Ultra-Narrow Equal Bezels
Materials & Protection: New Red-Luminescent Base Material, Xiaomi Longjing Glass, IP68 Dust and Water Resistance
Unlock & Battery: 3D Ultrasonic Fingerprint Sensor, 7000mAh Xiaomi Jinshajiang Battery, 100W Xiaomi Surge Wired Turbo Charging, 50W Xiaomi Surge Wireless Turbo Charging
Other Features: Stereo Ring-Shaped Cooling System, Xiaomi Starlink Communication System, Xiaomi HyperOS 3
Co-Developed with: Xiaomi × Leica

Design & Dimensions

Dimensions:

• Length: 151.1mm

• Width: 71.8mm

• Thickness: 8.06mm (excluding camera bump; based on Xiaomi Lab data, actual results may vary slightly depending on measurement methods)

• Weight: 191g (Xiaomi Lab data)

Available Colors:
White, Black, Snow Pink, Glacier Blue

Ports & Buttons:

• Ports: USB Type-C (dual-sided charging), Dual SIM Slot

• Buttons: Volume Up/Down, Power Button

• Others: Speaker, Microphone, Flashlight, IR Blaster

Memory & Storage

Configuration Options:

• Up to 16GB + 1TB

• RAM: 12GB / 16GB LPDDR5X

• ROM: 256GB / 512GB / 1TB UFS 4.1

Actual available storage and memory are less due to system software and pre-installed applications.

Processor

• Model: Snapdragon® 8 Gen 5 Ultimate Edition

• Process Technology: 3rd-Generation 3nm Process

• CPU: Octa-core up to 4.6GHz

• GPU: Adreno™ GPU

• AI: Qualcomm® AI Engine

Display

Basic Parameters:

• Size: 6.3 inches (measured diagonally; actual viewable area is smaller)

• Type: Flexible OLED Flat Display

• Resolution: 2656 × 1220 (1.5K)

• Refresh Rate: up to 120Hz

• Touch Sampling Rate: up to 300Hz

• Peak Brightness: up to 3500 nits

Display Features:
Professional TrueColor Display, Global DC Dimming, DCI-P3 Color Gamut, Ultra Dynamic Display, Wet Touch Support, Consistent Multi-Device Color Calibration

Certifications:
HDR10+, HDR Vivid, Dolby Vision

Unlock

3D Ultrasonic In-Display Fingerprint Sensor

Note: Third-party screen protectors may affect fingerprint recognition. Use official Xiaomi protectors for best results.

Battery & Charging

Battery:

• Capacity: 7000mAh (typ) / 6860mAh (min)

• Type: High-Energy Density Silicon-Carbon Cell (non-removable)

• Interface: USB Type-C

Charging:

• Wired: 100W Xiaomi Surge Turbo Charging, PPS Protocol 100W, 22.5W Wired Reverse Charging

• Wireless: 50W Xiaomi Surge Wireless Turbo Charging, 22.5W Wireless Reverse Charging

• Supported Protocols: QC3+, QC3.0, QC2.0, PD3.0, PD2.0

Charging data from Xiaomi Labs. Actual performance may vary due to environment and usage conditions.

Camera System

Rear Cameras:

• 50MP Light Fusion 950 Main Camera – Custom Sensor, f/1.67, 23mm equivalent, 2.4μm pixel (4-in-1), OIS, QPD Autofocus, LSC/ALD/MgF2 Coatings, 1G+6P Lens

• 50MP Leica Floating Telephoto – f/2.0, 60mm equivalent, 10cm–∞ focus range, OIS, Zoom EIS

• 50MP Leica Ultra-Wide – f/2.4, 102° Field of View, 6P Lens

Front Camera:

• 50MP Ultra-Sensitive – f/2.2, 90° FOV, AF Autofocus

Rear Camera Features:
Dynamic Photos, Auto Super Moon, Leica Authentic & Vibrant Modes, Dolby Vision Video, Action Shot, Pro Presets, Super Night Mode, Subject Tracking, Sound Focus, Portrait Blur, Master Lens Package, AI Beauty, Street Photography, Pro Mode, Timelapse, Slow Motion, Long Exposure, Document Mode, ID Copy, Panorama, Countdown, Voice & Gesture Shutter

Front Camera Features:
Dynamic Photos, AI Beauty, Portrait Blur, Video Prompter, Slow Motion, Timelapse, Gesture & Voice Capture

Video Recording:

• Rear: 8K@30fps, 4K@30/60fps, 1080p@30/60fps, 720p@30fps

  • Slow Motion: 720p@120/240/480/960/1920fps; 1080p@120/240/960fps

• Front: 4K@30/60fps, 1080p@30/60fps, 720p@30fps

Network & Connectivity

SIM & Network:

• Dual Nano-SIM, 5G standby (all carriers supported)

• Supports 5G / 4G / 3G / 2G

• Dual SIM Dual Active (5G+5G / 5G+4G in SA mode)

• VoLTE HD Voice

Supported Bands:

• 5G: n1 / n2 / n3 / n5 / n7 / n8 / n12 / n18 / n20 / n25 / n26 / n28 / n38 / n40 / n41 / n48 / n66 / n77 / n78 / n80 / n81 / n83 / n84 / n89

• 4G FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B66

• 4G TDD-LTE: B34 / B38 / B39 / B40 / B41 / B42 / B48

• 3G: WCDMA (B1 / B2 / B4 / B5 / B6 / B8 / B19)

• 2G: GSM (B2 / B3 / B5 / B8)

Wi-Fi & Bluetooth:

• Wi-Fi 7 / Wi-Fi 6 Enhanced / Wi-Fi 5 / Wi-Fi 4

• Supports MLO, 2x2 MIMO, Wi-Fi Direct, Miracast

• Bluetooth 5.4 (Dual-Bluetooth), Supports SBC / AAC / AptX / AptX HD / AptX Adaptive / LDAC / LHDC 5.0 / LC3 / MIHC

USB:

• USB 3.2 Gen1 (up to 5Gbps; USB 3 cable sold separately)

NFC:

• Supports Transport Cards (300+ Cities), Mi Pay (UnionPay, QR Code, Tap-to-Pay), Smart Access Cards, Car Keys

Navigation:

• Beidou (B1I+B1C+B2a), GPS (L1+L5), Galileo (E1+E5a), GLONASS (G1), QZSS (L1+L5), NavIC L5

• AGNSS, Wi-Fi & Network Positioning, Sensor-Aided Navigation

Audio & Video

Audio:

• Stereo Dual Speakers, 4-MIC Array

• Hi-Res & Hi-Res Wireless Certified

• Dolby Atmos, Spatial Audio, Real-Time Ear Monitoring, Audio Sharing

• Supported Formats: MP3, FLAC, APE, AAC, OGG, WAV, AMR, AWB

Video:

• Supported Formats: MP4, MKV, WEBM, 3GP, TS

• Supports HDR10+, Dolby Vision, HDR Vivid Playback

Sensors

Proximity Sensor, Under-Display Ambient Light (Color Temperature) Sensor, Rear Ambient Light Sensor, Accelerometer, Gyroscope, Electronic Compass, X-Axis Linear Motor, IR Blaster, Flicker Sensor, Laser Focus Sensor, Barometer, Hall Sensor

Operating System

Xiaomi HyperOS 3

In the Box

• Xiaomi 17 Handset
