Honor WIN – Flagship Performance & Unmatched Endurance

Core Selling Points

• 5th Gen Qualcomm Snapdragon 8 Elite Processor | 3nm Process, 4.6GHz Max Clock
• 10000mAh Qinghai Lake Battery | 100W Wired + 80W Wireless SuperCharge
• 6.83" OLED Eye-Care Gaming Screen | 185Hz Refresh Rate + 5920Hz PWM Dimming
• IP68/IP69/IP69K Triple Waterproof Rating | All-Scenario Durability
• MagicOS 10 (Based on Android 16) | AI-Enhanced Smooth Experience

Design & Dimensions

• Height: Approx. 163.1 mm
• Width: Approx. 76.6 mm
• Thickness: Approx. 8.3 mm
• Weight: Approx. 229 g (including battery)

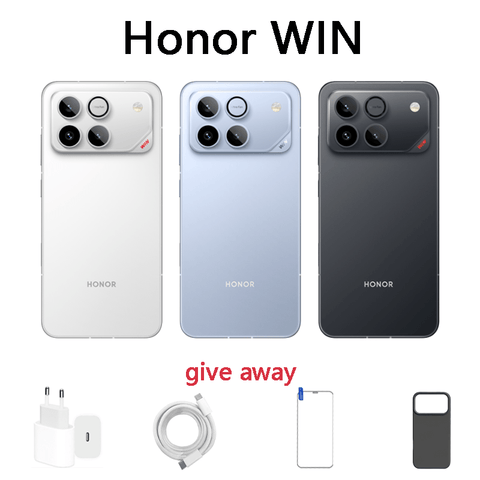

• Colors (China Version):
  • Matte White: Sporty matte finish with anti-fingerprint coating
  • Fresh Blue: Vibrant blue tone with scratch-resistant glass
  • Sleek Black: Minimalist black design with subtle texture


• Craft Details:
  • Front: 2.5D curved glass with pre-installed protective film
  • Back: Matte textured glass for ergonomic grip during long-term use
  • Middle Frame: Aviation-grade aluminum alloy – durable and lightweight


• Water & Dust Resistance: IP68, IP69, IP69K rated (resistant to splashes, immersion, and high-pressure water spray)
• Note: Dimensions and weight may vary by configuration; waterproof performance may decrease with daily wear.

Memory & Storage

• RAM Options: 12GB / 16GB (LPDDR5X, quad-channel; 16GB version equipped with LPDDR5X Ultra)
• Storage Variants:
  • 12GB + 256GB
  • 12GB + 512GB
  • 16GB + 512GB
  • 16GB + 1TB


• ROM Type: UFS 4.1 (sequential read up to 4.2GB/s, ensuring fast app launches and data transfers)
• Expandable Storage: Not supported
• OTG Data Transfer: Supported
• Note: Actual usable space is less due to system software occupation; 16GB RAM ensures smooth multitasking for years of use.

Display – Brilliant & Eye-Friendly

• Size: 6.83-inch OLED screen (rounded corners; actual visible area slightly smaller when measured as a standard rectangle)
• Resolution: 2800 × 1272 pixels (455 PPI)
• Color Depth: 10.7 Billion Colors | 100% DCI-P3 Wide Color Gamut
• Brightness: Peak 6000nits (outdoor visibility), Minimum 1nit (night mode)
• Refresh Rate: 1–185Hz LTPO Adaptive Refresh (185Hz for gaming, 1Hz for standby to save power)
• Eye Comfort: 5920Hz Ultra-High PWM Dimming (TÜV Rheinland Global Eye Care 5.0 Certification)
• Touch Sampling Rate: 3500Hz Instantaneous (gaming) / 480Hz Native (ten-finger touch)

Camera System – Solid Imaging Performance

Rear Cameras

• 50MP Main Camera: 1/1.56" sensor, ƒ/1.95 aperture, OIS+EIS dual anti-shake, 100% Focus Pixels
• 50MP Telephoto Camera: 3x optical zoom, ƒ/2.4 aperture, OIS anti-shake
• 12MP Ultra-Wide & Macro Camera: 112° FOV, ƒ/2.2 aperture, autofocus
• Zoom Capabilities: Up to 100x digital zoom
• Supported Modes: AI Super Telephoto, Stage Mode, Night Mode, Pro Mode, Dynamic Photo, Time-Lapse, HDR Photography

Front Camera

• 50MP Wide-Angle Camera: ƒ/2.0 aperture, Portrait Mode, smart beauty enhancement, 4K video recording
• Video Recording: Up to 4K@60fps (rear), 4K@30fps (front), with OIS/EIS stabilization

Performance – Flagship-Grade Power

• Processor: 5th Gen Qualcomm Snapdragon 8 Elite Mobile Platform
  • Process Node: 3nm (TSMC) – energy-efficient and high-performance
  • CPU: Octa-core (2×Prime 4.6GHz + 6×Performance 3.62GHz), 32% faster response than the previous generation
  • GPU: Adreno 840, 25% improved ray tracing performance
  • NPU: 37% performance boost, enabling advanced AI features
  • Benchmark: AnTuTu score exceeding 4.4 million, leading flagship rankings


• Cooling System: Honor Dongfeng Turbo Cooling (25000 rpm fan, dual 360° air ducts), 30% improved heat dissipation
• Gaming Enhancements:
  • 185Hz native high refresh rate for mainstream games, GPU Super Resolution & Super Frame technology
  • 3500Hz instantaneous touch sampling rate, 25ms touch latency
  • AI Game Manager, Anti-Mistouch 3.0, real-time voice changer



Battery & Charging – Unmatched Endurance

• Battery Capacity: 10000mAh (typical) / 9755mAh (rated), Qinghai Lake 4.0 Safety System
  • Energy Density: 910Wh/L, industry-leading for a slim form factor
  • Low-Temperature Performance: Stable discharge at -20°C
  • Battery Life: 16.4 hours of continuous gaming, 31.3 hours of short video playback, 19.5 hours of video streaming


• Wired Charging: 100W SuperCharge (20V/5A) – fast top-up for urgent needs
• Wireless Charging: 80W Wireless SuperCharge (requires compatible Honor wireless charger)
• Reverse Charging: 27W wired reverse charging, 10W wireless reverse charging
• Note: Actual charging speed varies by scenario; use official Honor chargers for optimal performance.

Security & Biometrics

• Fingerprint Sensor: In-display optical fingerprint (0.14s fast unlock, supports wet-hand operation)
• Face Recognition: 2D Facial Recognition (supports low-light unlocking)

Network & Connectivity

• SIM Type: Dual Nano-SIM (Dual Standby, Dual 5G Dual Connect)
• 5G Bands: n1/n3/n5/n8/n28A/n38/n40/n41/n48/n66/n77/n78/n79
• Wi-Fi: Wi-Fi 7 (802.11 be) + Wi-Fi 6/5, 2.4GHz & 5GHz dual-band, 2×2 MIMO, 160MHz channel width
• Bluetooth: Bluetooth 6.0, supports BLE, LE Audio, Auracast, and high-definition audio codecs (SBC, AAC, LDAC, aptX HD, LHDC 5.0)
• NFC: Multi-function NFC (supports card reading, eSE, HCE, NFC-SIM; SIM1 slot only for NFC-SIM)
• USB Port: USB Type-C (USB 2.0), supports Type-C digital headphones
• Other: Infrared Remote Control, Honor Hongyan Communication System, LinkTurbo X intelligent network switching

Positioning & Sensors

• Supported Navigation Systems: Beidou (B1I+B1C+B2a+B2b), GPS (L1+L5), GLONASS (G1), Galileo (E1+E5a+E5b), QZSS (L1+L5), NavIC (L1+L5)
• Sensors: Gravity Sensor, IR Sensor, In-display Fingerprint Sensor, Gyroscope, Compass, Ambient Light Sensor, Proximity Sensor (ultrasonic-based), Accelerometer

In the Box

• Honor WIN Smartphone (with built-in battery)×1
